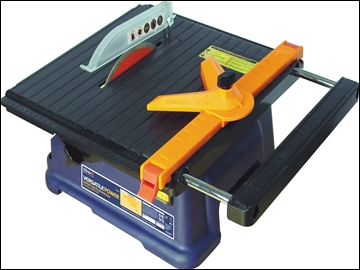

This mains powered wet tile saw has a direct drive system which produces a constant cutting speed for ultra smooth cuts, water cooling system with large reservoirs, diamond blades with continuous rim for extra clean cut. It has an integral ruler and quick release rip guide for perfect straight cuts, fully adjustable mitre guide with unique ratchet mechanism and the tables tilt for 45°mitres. 180mm blade cuts wall and floor tiles up to 26mm thick, 17mm at 45°. Suitable for porcelain, ceramic, granite, natural stone and marble tiles. 240v.

Maximum wheel diameter: 180mm

Manufacturer code: 103404

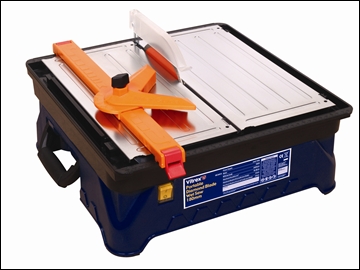

Professional diamond blade wet saw 180mm universal ceramic tile cutter. Direct drive produces a constant cutting speed for ultra smooth cuts. Powerful 560watt induction motor. Thermal overload protection to prevent overheating. 180 x 16mm diamond blade with continuous rim for extra clean cut. Sturdy steel table top. Water cooling system with large reservoir and integral drainage. Flip-up table top for 15º, 30º and 45º mitres. Integral ruler and adjustable rip guide for perfect straight cuts. Fully adjustable mitre guide with unique ratchet mechanism. Transparent wheel guard with variable height adjustment. Moulded plug with 1.5m cable and easy integral storage. Convenient built-in carry handle, accessory storage and cable tidy.

Specification: Motor = 560w, RPM (no load) = 2800rpm, Max. Sound level = 95 dB (A) (if the sound intensity level exceeds 85db (A) ear protection should be worn by the operator), Max depth of cut (with new blade) = 33mm, Max depth of cut at 45º (with new blade) = 25mm.

Available in either: 240v or 110v

Manufacturer codes: 103413, 103414

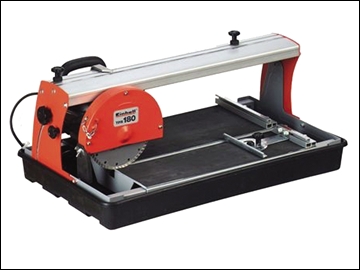

The TPR180 is a portable machine for tile and stone cutting of small and medium pieces. The machine can easily be set for mitre and compound mitre cuts. The integrated cooling agent pump protects the diamond disc and allows virtual dust free working conditions. Technical data: Working table 500 x 385mm. 240V. Power: 600 watts. Idle speed : 2950 min-1. Cutting depth max: 0°- 25/ 45°-15mm. Cutting length max: 420mm. Mitre cut: 0° - 45°. Size of disc: 180 x 25.4mm. Insulation glass: IP 54. Max tile thickness: 27 mm. Weight 24kg.

Features: Work table with rubber mat. Sturdy aluminium guide rail. Strong disc cover made of sheet steel. Large water pan. Motor setting 4 fold ball bearing. Motor guidance setting 0 - 45º and tilting. Angle stop with scale. Integrated cooling agent pump. Stable grip.

Manufacturer code: 43.012.42

This item is not available to purchase via our website due to it's heavy weight - if you would like this item please telephone us for further details.
