13mm Diamond Core Drill - Rotary & Percussion. Percussion action for pilot hole, rotary-only for diamond core drilling. Torque-limiter disengages clutch when the core jams.

Standard Equipment: Drill Chuck, Chuck Key, Side Handle

Specification:

Max in Steel: 13mm, Max in Wood: 30mm, Max in Masonry: 20mm,

Max Dry Diamond Core: 152mm, Blows per minute: 0-22,500bpm,

No Load Speed: 0-1,500rpm, Input wattage: 850w

Carry case included

Double insulated

Variable speed trigger

110V or 240V

13mm Diamond Core Drill - Rotary & Percussion. Percussion action for pilot hole, rotary-only for diamond core drilling. Torque-limiter disengages clutch when the core jams.

Standard Equipment: Drill chuck, chuck key, side handle, 52mm diamond core, adaptor pack, drill bit

Specification:

Max in Steel: 13mm, Max in Wood: 30mm, Max in Masonry: 20mm,

Max Dry Diamond Core: 152mm, Blows per minute: 0-22,500bpm,

No Load Speed: 0-1,500rpm, Input wattage: 850w

Carry case included

Double insulated

Variable speed trigger

110V or 240V

13mm Diamond Core Drill - Rotary & Percussion. Fast drilling in brick with powerful 850W motor. Torque limiter disengages clutch at preset level.

Standard Equipment: Drill chuck, chuck key, side handle, depth stop

Specification:

Max in Steel: 13mm, Max in Wood: 35mm, Max in Masonry: 20mm,

Max Dry Diamond Core: 152mm, Blows per minute: Hi 28,800-64,000bpm / Lo 14,400-32,000bpm, No Load Speed: Hi 1,800-4,000rpm / Lo 900-2,000rpm, Input wattage: 1400w

Carry case included

2 Mechanical gears

Double insulated

Anti vibration system

Electronic speed control

Soft start

110V or 240V

Rotary Wet & Dry Diamond Core Drill. Safety features include: mechanical safety clutch, electronic torque-limiter and speed control.

Standard Equipment: Side handle, carrying case, double threaded adaptor, in-line RCD, tap, water supply pipe, water injector

Specification:

Max. Diamond Core Capacity: 1st speed: 132mm, 2nd speed: 70mm,

Adaptor: 11/4" UNC Outside 1/2" BSP Inside, No Load Speed: 1st speed: 0-800rpm, 2nd speed: 0-1,570rpm,

Collar Clamping Diameter: 53mm, Rated Power Input: 1,500w

Carry case included

2 Mechanical gears

Double insulated

Rotary only action

Variable speed trigger

110V

Diamond Core Drill. Convenient electronic variable speed control. Fast drilling of holes up to 82mm diameter.

Standard Equipment: Side handle

Specification:

Max. Diamond Core Capacity: up to 82mm, Collet: 1/2" BSP male, No Load Speed: 0-2,000rpm,

Collar Clamping Diameter: 46mm, Rated Power Input: 1,500w

Carry case included

Double insulated

Rotary only action

Variable speed trigger

110V

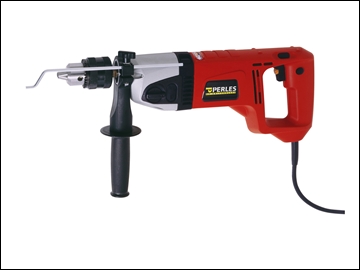

Designed to provide premium performance as a percussion and non-percussion drill. The all aluminium gear housing protects the close tolerance reducing gearbox designed for both performance and long tool life, while the ball bearing style spindle efficiently caters with the extreme axial loads encountered when drilling using a drilling stand. Features a 2 speed mechanical gears as well as electronic speed adjustment with soft start control features. 1050 watt motor with built in safety clutch.

Drilling Capacities: Diamond core drill 127mm
Steel 16mm
Concrete 35mm
Wood 50mm
2 speed 0-910 / 0-1850rpm
16mm chuck
Carry case
110V or 240V.

Manufacturer code: PSB81016L, PSB81016K
